Primary Cooling System Coastdown

In this example we wish to take a look at a research nuclear reactor’s Primary Cooling System (PCS) which begins to shut down (say, in a Loss Of Flow event). Luckily, a flywheel is installed, which dampens the quick loss of flow and saves the day (supposedly).

This example does not deal with any specific real reactor parameters, and includes only 3 effective components:

1. Pump

2. Flywheel

3. Resistor, effectively representing PCS + core

We will solve the problem both numerically and analytically and compare the two solutions.

import matplotlib.pyplot as plt
import numpy as np
from matplotlib import rc

rc("font", family="serif", size=15)
rc("savefig", dpi=600)
rc("figure", figsize=(8, 6))
rc("mathtext", fontset="dejavuserif")
rc("lines", linewidth=3)

from stream.calculations import Inertia, Pump
from stream.composition import ResistorFromKnownPoint

Components

Pump

dp0 = 1.6e5
pump = Pump(pressure=dp0, name="Pump")

Flywheel (Electrically, an Inductor)

inertia = 8e3
flywheel = Inertia(inertia=inertia, name="Flywheel")

Resistor

from stream.substances import light_water
from stream.units import hour

T = 20.0
Q0 = 2000 / hour
rho0 = light_water.density(T)
mdot0 = Q0 * rho0

resistor = ResistorFromKnownPoint(dp=-dp0, mdot=mdot0, behavior="parabolic", Tin=T, fluid=light_water, name="PCS")

Assembling a Simulation

import pandas as pd

from stream.calculations import KirchhoffWDerivatives
from stream.calculations.kirchhoff import to_str
from stream.composition import flow_edge, flow_graph, flow_graph_to_agr_and_k

fg = flow_graph(flow_edge(("A", "B"), pump, flywheel), flow_edge(("B", "A"), resistor))

agr, K = flow_graph_to_agr_and_k(
    fg,
    inertial_comps=[flywheel],
    k_constructor=KirchhoffWDerivatives,
    funcs={resistor: dict(Tin=T)},
)
from stream.analysis.report import report

report(agr)

Contains 10 Equations, 4 Nodes, 12 Edges.

Calculation	Type	Equation No.	Unset	Set Externally	Missing
Pump	Pump	0 - 2	pressure, mdot0
Flywheel	Inertia	2 - 4
PCS	Friction	4 - 6		Tin
Kirchhoff	KirchhoffWDerivatives	6 - 10

steady = agr.save(
    agr.solve_steady(
        {
            K.name: {
                "(A -> B, 0)": mdot0,
                "(A -> B, mdot2 0)": 0.0,
                "(B -> A, 0)": mdot0,
                "(B -> A, mdot2 0)": 0.0,
            },
            pump.name: dict(Tin=T, pressure=dp0),
            resistor.name: dict(Tin=T, pressure=-dp0),
            flywheel.name: dict(Tin=T, pressure=0.0),
        }
    )
)

pd.DataFrame(steady.filter_values(lambda v: not np.isclose(v, 0)))

	Pump	Flywheel	PCS	Kirchhoff
Tin	20.0	20.0	20.0	NaN
pressure	160000.0	NaN	-160000.0	NaN
(A -> B, 0)	NaN	NaN	NaN	554.419285
(B -> A, 0)	NaN	NaN	NaN	554.419285

Analytic Solution of the Transient

Assuming the pump has shut down immediately (that is, imposes zero pressure drop), the Kirchhoff Voltage Law (KVL) of the system looks like:

\[L\frac{d\dot{m}}{dt} = - k \dot{m} ^ 2\]

Using \(\alpha \equiv k/L\):

\[\frac{d\dot{m}}{dt} = -\alpha \dot{m} ^ 2\]

It is easy to verify that the equation above is solved by:

\[\dot{m}(t) = \frac{\dot{m}_0}{1 + \dot{m}_0\alpha t}\]

Transient Calculation

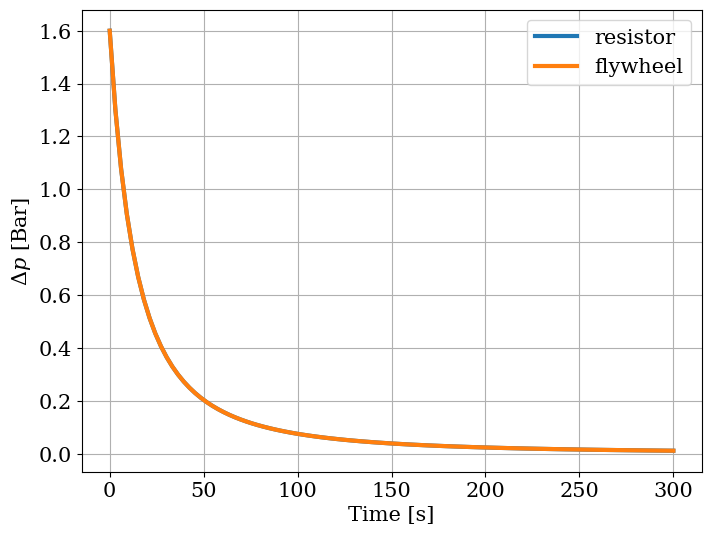

pump.p = 0.0
t = np.linspace(0, 300, 100)
transient = agr.solve(steady, time=t)

plt.figure(figsize=(8, 6))
plt.plot(t, -agr.at_times(transient, resistor, "pressure") / 1e5, label="resistor")
plt.plot(t, agr.at_times(transient, flywheel, "pressure") / 1e5, label="flywheel")
plt.xlabel("Time [s]")
plt.ylabel(r"$\Delta p$ [Bar]")
plt.legend()
plt.grid()

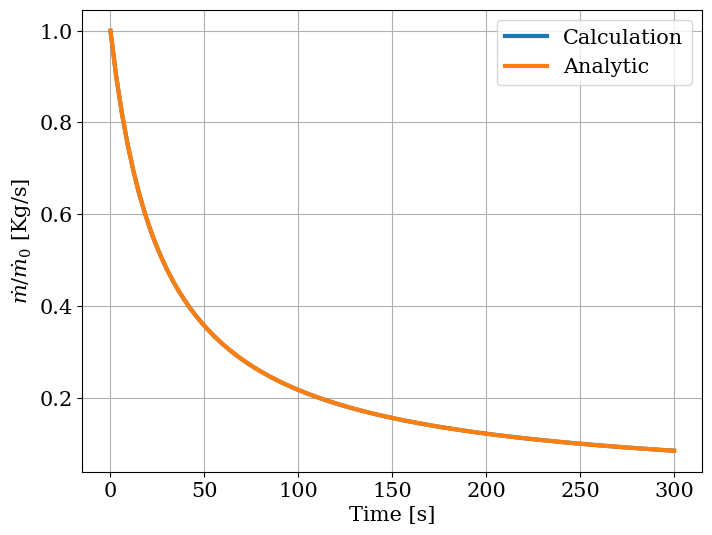

Comparing analytic and calculation of \(\dot{m}\):

mdotc = agr.at_times(transient, K, to_str(("A", "B", 0)))
mdot0 = steady[K.name][to_str(("A", "B", 0))]
α = np.abs(resistor.dp_out(mdot=1.0, Tin=T) / inertia)
mdota = mdot0 / (1 + α * mdot0 * t)

plt.figure(figsize=(8, 6))
plt.plot(t, mdotc / mdot0, label="Calculation")
plt.plot(t, mdota / mdot0, label="Analytic")
plt.legend()
plt.xlabel("Time [s]")
plt.ylabel(r"$\dot{m} / \dot{m}_0$ [Kg/s]")
plt.grid()

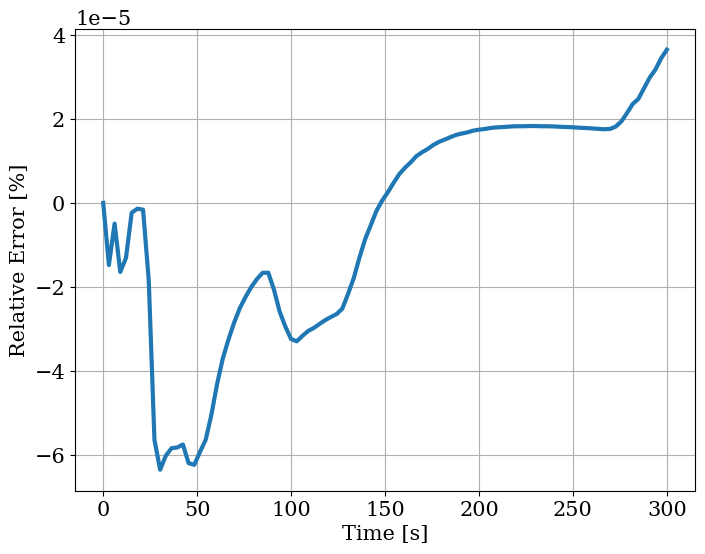

plt.figure(figsize=(8, 6))
plt.plot(t, 100 * (mdotc - mdota) / mdota)
plt.xlabel("Time [s]")
plt.ylabel("Relative Error [%]")
plt.grid()

As one can see, the analytic solution is well reproduced by the calculation.
